I recently completed and delivered this commissioned instrument to a musician in New York state. After the initial contact and much discussion by e-mail, the entire process required only three months. The wait probably seemed longer to the musician anxious to receive his first luthier built autoharp but its completion was well within my usual two to five month time estimate.
He has been playing autoharp for over forty years and writes worship songs that he plays for small gatherings. By commissioning a custom autoharp he could choose features that greatly enhance his music and playing style. The songs he writes and performs are mostly in the keys of C and F so an enhanced diatonic string schedule and a fifteen bar chord setup with two lockbars was designed for the chords he needs. He plays acoustically in private and amplified in public so an electromagnetic pickup and jack were installed. Other chosen options were fine tuners which are very useful with a diatonic, and cosmetic features such as a custom oval sound hole rosette.

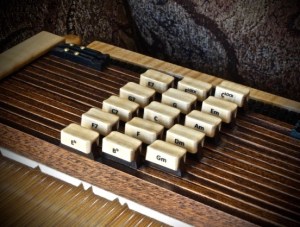

The chord bars, bridges, side veneer, chord bar covers, and tail cover are made of African mahogany stained with Minwax red mahogany oil stain. The chord bar covers, chord buttons, and tail cover are capped with curly maple finished natural. The soundboard is spruce, the back is maple veneer, and everything is finished with up to six coats of semi-gloss Deft lacquer.

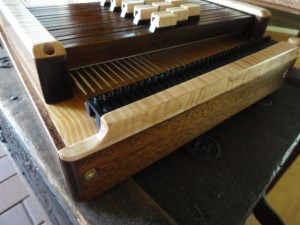

The Schreiber electromagnetic pickup is specially wound for this thirty-seven string array and is fastened underneath the chord bars by metal tabs that fit in slots on the underside of the Delrin chord bar combs. A small length of coax is routed through the inside of the instrument to a 1/4″ jack.

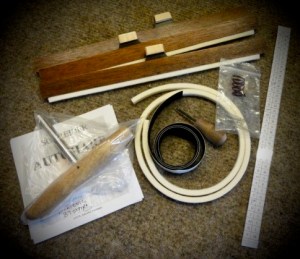

Many of my autoharps are shipped out of state and abroad to musicians who will likely want to experiment with alternative chords or attend to future DIY adjustments and repairs. For this I include some extra blank felted chord bars, extra chord felt, self adhesive under cover felt, and extra springs. The wrapper from the custom string set will help them order the proper strings when it becomes necessary and a laminated strip indicates the tuning of each string. Also included is the allen wrench that comes with the fine tuners and a new star tipped T-wrench.

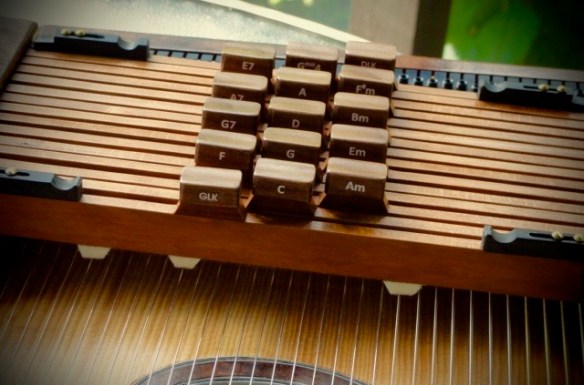

The latest from here at Fretnot Laboratories is this custom thirty-seven string, fifteen bar diatonic in the keys of G and D. It features Daigle fine tuners, two lock bars, flat chord bar buttons, and five extra blank chord bars for future substitutions. A custom oval rosette was fashioned using walnut burl and plastic white-black-white purfling. Walnut burl also trims the tops of the chord bar covers and the tail end cover.
With few exceptions, autoharps have been made of wood. Solid and laminated hardwood frames have been enclosed by hardwood, softwood, and plywood with the builder’s and player’s personal preferences guiding the combination. Decades of research and experimentation with natural materials have led to construction techniques for building good sounding and structurally stable instruments but swings in temperature and humidity persist in causing cracks, bulges, separations, tuning instability and even implosions. Temperature control, humidifiers in the winter, dehumidifiers in the summer, and fine tuners all help us avoid adverse environmental effects but, as careful as we are, there can be some disappointing surprises. Could there be a material that’s very stable and sounds good? Carbon fiber may be the answer.
Carbon fiber, a very strong and rigid composite material, has been used successfully to build musical instruments for many years. The first luthier to utilize this material in sheet form for autoharp construction was Pete Daigle of Daigle Autoharps in Seattle, Washington.
My recent interest in trying carbon fiber has taken the form of this new thirty-seven string chromatic. With my one piece laminated frame and back and a carbon fiber soundboard, I’m hoping that this buggy will never crash and the only maintenance necessary will be the occasional tune-up and maybe a couple of future brake jobs.
I ordered a 12″x24″x1/8″ blank sheet of carbon fiber from the DragonPlate company in Elbridge, NY. The purchase cost and machining labor was about five times greater than that of making a comparable wooden top.
The 1/4″ side veneer, tailpiece, and chord bar holders are made of red oak with an interesting “bark intrusion”. The eighteen maple chord bars are lacquered black and the buttons have been randomly burnt with a mini torch to resemble the oak trim.
The standard chromatic tuning schedule includes a thirty-seventh string tuned to D6. The eighteen thin chord bars are carried by steel pins driven into Delrin bases. The three row setup favors the keys of C, G, and D and includes the Cdim7th, C#dim7th, and Ddim7th chords.
To access the chord bars for adjustment or change I made magnetic holder covers that can be easily popped open without removing screws. The caps are aligned with tiny pins at each end and held fast in the center by small rare earth magnets. Self adhesive felt strips on the underside of the caps quietly adjust the chord bars’ height for a low playing action.
So, how does this carbon fiber sound? For us, it is too soon to say anything other than “different”. Folks who play the Daigle carbon fiber harps report that they are loud, bright, and have a “crazy amount of sustain”. It does seem louder than our other instruments but we need a “breaking in” period before we can assess its tone, articulation, and presence. Almost as important is the expectation of greater structural stability and the attractive visual combination of carbon fiber and red oak.
“Ah, but I was so much older then
Our lives have changed a lot since then but there is still that old friend nostalgia. For me, it surfaces from time to time in the form of a rather whimsical creation like… this “Hippy ‘Harp”.
Apart from the paint job, it differs little from my standard instrument. It’s a thirty-six string chromatic with fifteen thin chord bars painted in a rainbow pattern ( it might be said that all of the chords are “color chords”). The quiet chord bars are carried on #6 steel bridge pins driven into Delrin bases. Structurely, it features a laminated pin block frame, birch ply back, and a solid poplar soundboard. A peace symbol rosette is inlaid in the sound hole and an there is an additional sound hole in the back that makes the sound more audible to the player’s left ear and is useful for handling the instrument.
Here is a new custom autoharp commissioned by a musician and performer from Ontario. He desired a bright white “dove of peace” shaped sound hole on an all black body. The dove shape that he chose was too delicate to cut into the soundboard so I inlayed it in a walnut veneer ring with a bright white plastic material.
Walnut was the choice for the bridges, chord bars, chord bar buttons, bar comb covers, and tailpiece. Along with the brass hardware it makes for a subtle contrast to the solid black body.
The thirty-seven strings are anchored at the tail end with a set of Daigle Flatline fine tuners. Each string can be fine tuned by turning its allen screw with a small wrench. This is especially useful with a diatonic autoharp that has several string pairs that need to be tuned in unison and beatless. Fine tuners are also helpful for tweaking the strings that go a little sharp or flat from day to day environmental changes in temperature and humidity.
